Final Steps

Top Previous Next



We could delete the PageFooter band, but we’ll go ahead and add  to it.

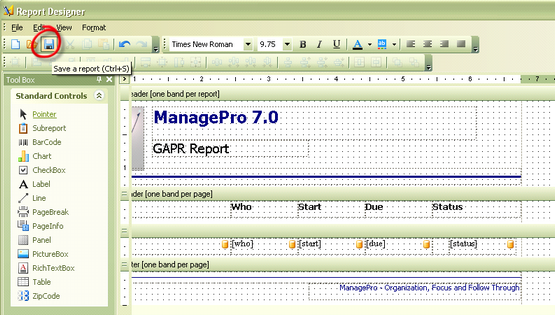

Finally, click the Save button to save the layout, then close the designer.



NOTE:  It is important to click “Save” before closing the designer.



_img18.zoom70





Click OK on the Report Options dialog and you’ll see the new report in the Report Gallery:

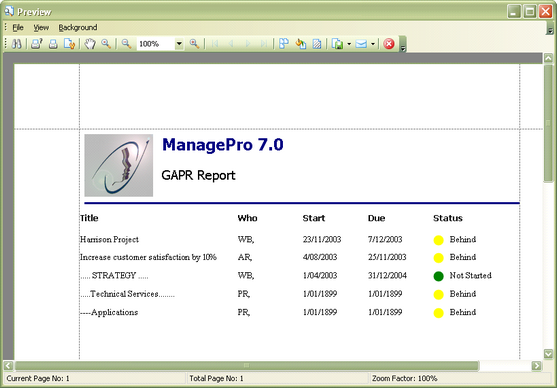

Double-Click the report thumbnail to see the Preview..



_img20.zoom68





Advanced: How to Include Notes



1.

Modify the report to enable inclusion of the Notes field.

2.

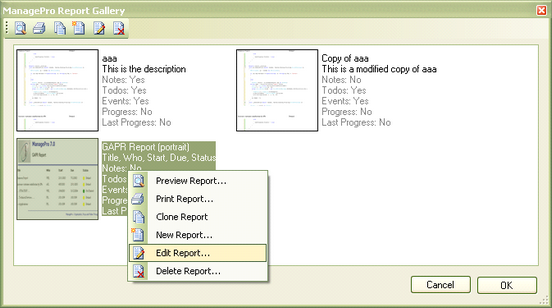

Open the Report Options dialog by clicking the “Edit Report” toolbar button or right-click option.



_img21.zoom82

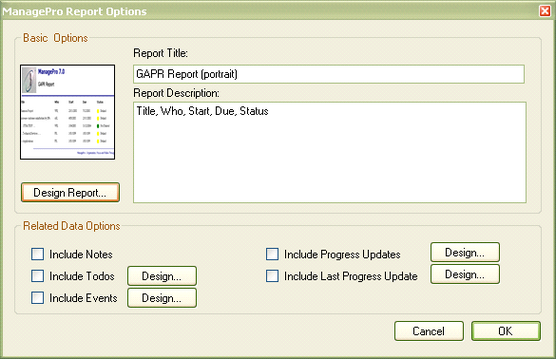

Click “Design Reports…” to open the Report Designer.



_img22.zoom95



ManagePro ä stores notes as HTML, since the Report System does not support printing of HTML content we must cheat and first generate an Image of the HTML and print this in the report, therefore in order to display notes we must include a Picture Box control for them.



1.

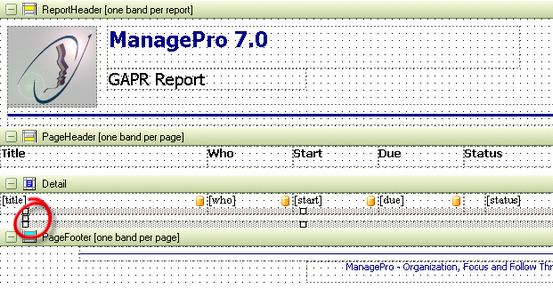

First, make the Details band slightly higher and Drag & Drop a Picture Box from the Tool Box,

2.

stretch it out to the right-margin,

3.

in this example we have allowed an indent on the left-side.



Set the height of the Picture Box to a minimum value, this is important because we don’t want the Detail band to increase the line spacing for records which don’t have notes, in the next step we setup the Picture Box so it will grow to accommodate the notes content if any for each record.



_img23.zoom89

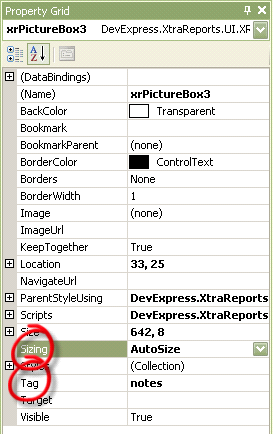

Set the properties for the new Picture Box:



First, set the sizing mode to AutoSize, this will ensure the control will grow and shrink depending on the actual notes content.



NOTE: Once a Picture Box is set to AutoSize you can no longer size it with the mouse, if you need to adjust it again, set sizing mode to Normal temporarily.



Then, another non-obvious property, set the Tag property to the value “notes”, this will tell ManagePro that this control is to be used for the notes content.



_img24

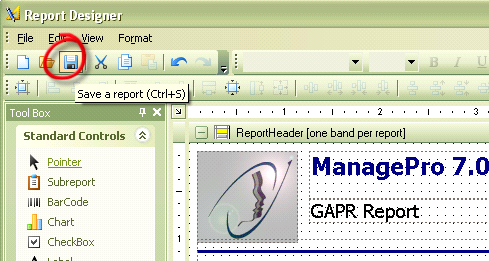

Save the layout as before:



_img25



1.

And Exit the Report Designer to return to the Report Options dialog.

2.

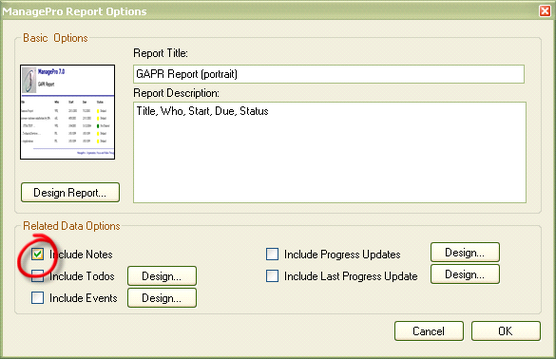

Check the Include Notes option, then Click OK to save.



_img26.zoom95



1.

You may notice the Thumbnail in the Report Gallery  has now changed to show notes content (this will depend on your particular database).

2.

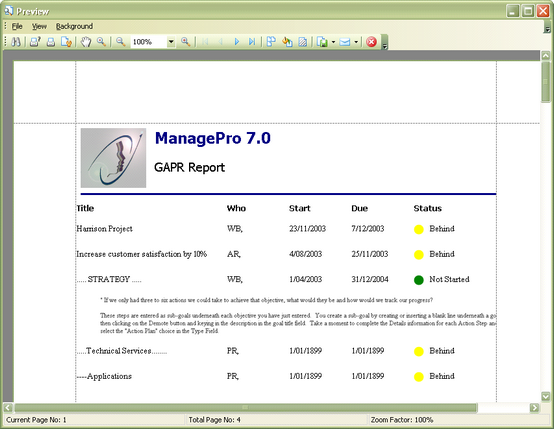

Double click (or click the Preview Report toolbar button or right-click option) to preview the new report..



_img27.zoom65
